Series
Product Name
Power
Specifications
Temperature coefficient
Precision
Resistance segment
Specifications
Details
KNS

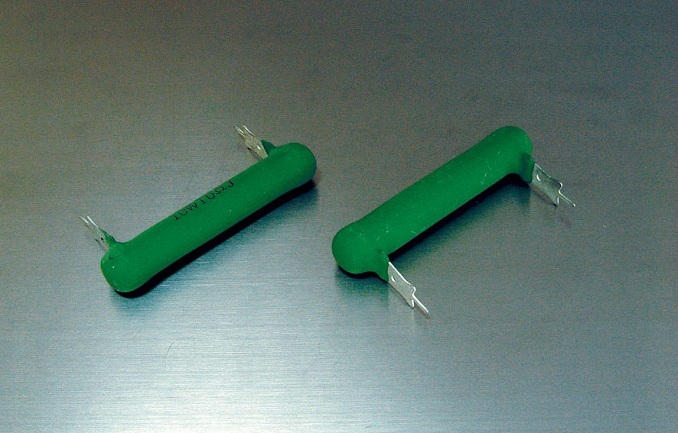

Wire-Wound Fixed Resistors
10W
KNS
±400
±2% ±5% ±10%
0.3Ω≤R＜20Ω
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
8W
KNS
±400
±2% ±5% ±10%
0.2Ω≤R＜20Ω
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
7W
KNS
±400
±2% ±5% ±10%
0.01Ω≤R＜20Ω
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
5W
KNS
±400
±2% ±5% ±10%
0.01Ω≤R＜20Ω
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
3W
KNS
±400
±2% ±5% ±10%
0.068Ω≤R＜20Ω
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
2W
KNS
±400
±2% ±5% ±10%
0.05Ω≤R＜20Ω
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
10W
KNS
±300
±2% ±5% ±10%
20Ω≤R≤3.3KΩ
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
8W
KNS
±300
±2% ±5% ±10%
20Ω≤R≤2.2KΩ
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
7W
KNS
±300
±2% ±5% ±10%
20Ω≤R≤1.1KΩ
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
5W
KNS
±300
±2% ±5% ±10%
20Ω≤R≤750Ω
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
3W
KNS
±300
±2% ±5% ±10%
20Ω≤R≤470Ω
File size:319.85 KB
Details
KNS
Wire-Wound Fixed Resistors
2W
KNS
±300
±2% ±5% ±10%
20Ω≤R≤470Ω
File size:319.85 KB
Details
KNHA
Wire-Wound Fixed Resistors
30W
KNHA
±400
±2% ±5% ±10%
0.4Ω≤R＜20Ω
File size:286.93 KB
Details
KNHA
Wire-Wound Fixed Resistors
25W
KNHA
±400
±2% ±5% ±10%
0.4Ω≤R＜20Ω
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
100W
KNH
±400
±2% ±5% ±10%
3Ω≤R＜20Ω
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
80W
KNH
±400
±2% ±5% ±10%
3Ω≤R＜20Ω
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
60W
KNH
±400
±2% ±5% ±10%
3Ω≤R＜20Ω
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
50W
KNH
±400
±2% ±5% ±10%
3Ω≤R＜20Ω
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
40W
KNH
±400
±2% ±5% ±10%
0.6Ω≤R＜20Ω
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
30W
KNH
±400
±2% ±5% ±10%
0.5Ω≤R＜20Ω
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
25W
KNH
±400
±2% ±5% ±10%
0.4Ω≤R＜20Ω
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
20W
KNH
±400
±2% ±5% ±10%
0.4Ω≤R＜20Ω
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
30W
KNH
±300
±2% ±5% ±10%
20Ω≤R≤10KΩ
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
25W
KNH
±300
±2% ±5% ±10%
20Ω≤R≤10KΩ
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
100W
KNH
±300
±2% ±5% ±10%
20Ω≤R≤50KΩ
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
80W
KNH
±300
±2% ±5% ±10%
20Ω≤R≤40KΩ
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
60W
KNH
±300
±2% ±5% ±10%
20Ω≤R≤30KΩ
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
50W
KNH
±300
±2% ±5% ±10%
20Ω≤R≤25KΩ
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
40W
KNH
±300
±2% ±5% ±10%
20Ω≤R≤20KΩ
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
30W
KNH
±300
±2% ±5% ±10%
20Ω≤R≤15KΩ
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
25W
KNH
±300
±2% ±5% ±10%
20Ω≤R≤10KΩ
File size:286.93 KB
Details
KNH
Wire-Wound Fixed Resistors
20W
KNH
±300
±2% ±5% ±10%
20Ω≤R≤10KΩ
File size:286.93 KB
Details
RA
Alloy Shunt Resistors
7W
RA30
±50
±0.5%,±1%,±2%,±5%
3mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
7W
RA30
±50
±0.5%,±1%,±2%,±5%
2.5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
7W
RA30
±50
±0.5%,±1%,±2%,±5%
2mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
8W
RA30
±50
±0.5%,±1%,±2%,±5%
1.5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
9W
RA30
±50
±0.5%,±1%,±2%,±5%
1mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
10W
RA30
±75
±0.5%,±1%,±2%,±5%
0.75mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
10W
RA30
±75
±0.5%,±1%,±2%,±5%
0.6mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
10W
RA30
±75
±0.5%,±1%,±2%,±5%
0.5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
10W
RA30
±100
±0.5%,±1%,±2%,±5%
0.4mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
10W
RA30
±100
±0.5%,±1%,±2%,±5%
0.35mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
10W
RA30
±100
±0.5%,±1%,±2%,±5%
0.3mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
12W
RA30
±100
±0.5%,±1%,±2%,±5%
0.25mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
15W
RA30
±100
±0.5%,±1%,±2%,±5%
0.2mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
15W
RA30
±200
±0.5%,±1%,±2%,±5%
0.1mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
4W
RA20
±50
±0.5%,±1%,±2%,±5%
5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
5W
RA20
±50
±0.5%,±1%,±2%,±5%
4mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
5W
RA20
±50
±0.5%,±1%,±2%,±5%
3mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
5W
RA20
±50
±0.5%,±1%,±2%,±5%
2.5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
6W
RA20
±50
±0.5%,±1%,±2%,±5%
2mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
6W
RA20
±50
±0.5%,±1%,±2%,±5%
1.5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
8W
RA20
±50
±0.5%,±1%,±2%,±5%
1mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
7W
RA20
±50
±0.5%,±1%,±2%,±5%
1mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
8W
RA20
±70
±0.5%,±1%,±2%,±5%
0.7mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
9W
RA20
±70
±0.5%,±1%,±2%,±5%
0.5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
9W
RA20
±100
±0.5%,±1%,±2%,±5%
0.4mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
10W
RA20
±150
±0.5%,±1%,±2%,±5%
0.3mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
12W
RA20
±200
±0.5%,±1%,±2%,±5%
0.2mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
3W
RA12
±70
±0.5%,±1%,±2%,±5%
5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
3W
RA12
±70
±0.5%,±1%,±2%,±5%
4mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
4W
RA12
±70
±0.5%,±1%,±2%,±5%
3mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
4W
RA12
±70
±0.5%,±1%,±2%,±5%
2.5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
5W
RA12
±70
±0.5%,±1%,±2%,±5%
2mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
5W
RA12
±70
±0.5%,±1%,±2%,±5%
1.5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
6W
RA12
±70
±0.5%,±1%,±2%,±5%
1.2mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
5W
RA12
±100
±0.5%,±1%,±2%,±5%
1mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
6W
RA12
±115
±0.5%,±1%,±2%,±5%
0.5mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
6W
RA12
±175
±0.5%,±1%,±2%,±5%
0.3mΩ
File size:426.24 KB
Details
RA
Alloy Shunt Resistors
6W
RA12
±175
±0.5%,±1%,±2%,±5%
0.2mΩ
File size:426.24 KB
Details
LR

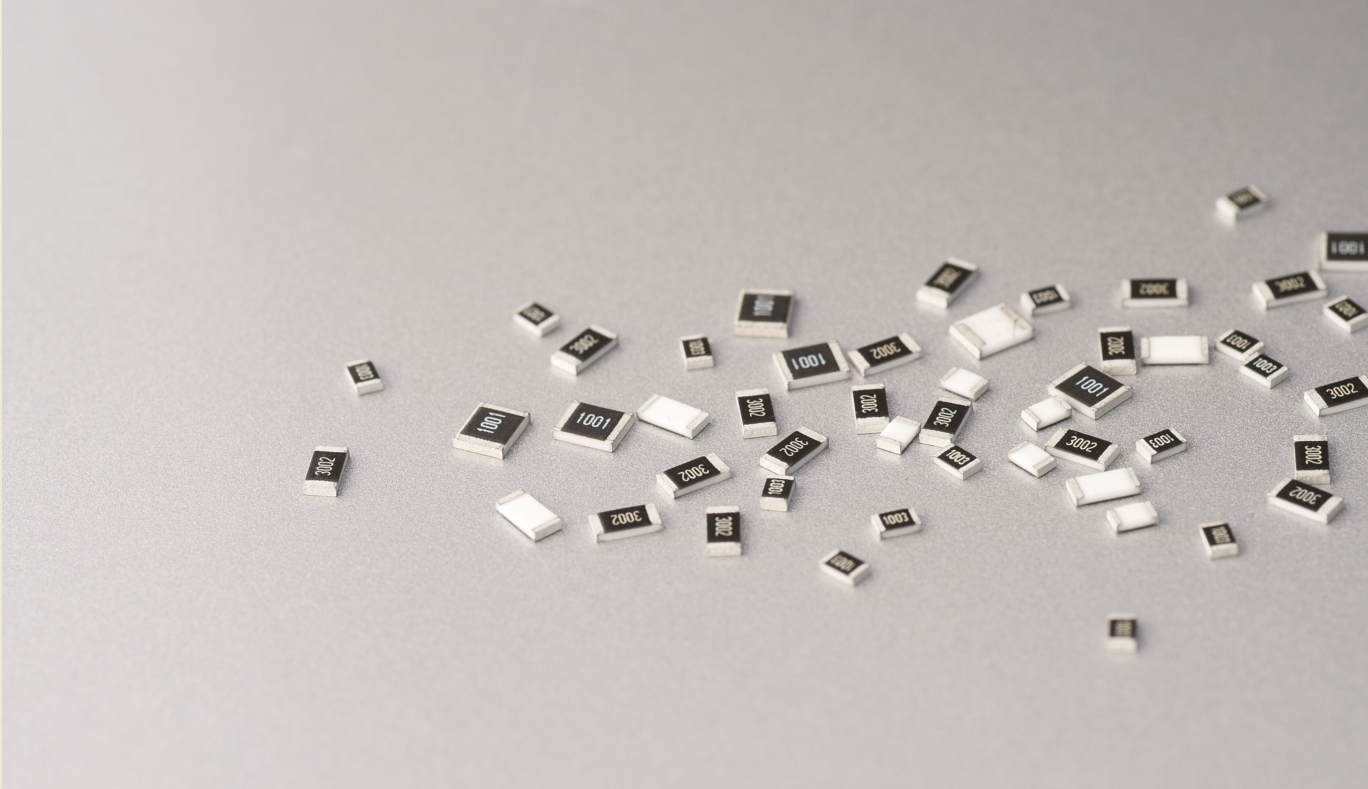

Metal Strip Chip Resistors
2W~3W
LR12
±50
±1%~±5%
1mΩ~350mΩ
File size:625.54 KB
Details
LR
Metal Strip Chip Resistors
2W~3W
LR12
±75
±1%~±5%
0.5mΩ
File size:625.54 KB
Details
LR
Metal Strip Chip Resistors
1W、1.5W
LR06
±50
±1%~±5%
2mΩ~30mΩ
File size:625.54 KB
Details
MW
Metal Foil Wide Terminal Current Sensing Chip Resistors
3W
MW25
±50~±100
±0.5%~±1%
1mΩ~100mΩ
File size:906.12 KB
Details
MW
Metal Foil Wide Terminal Current Sensing Chip Resistors
2W
MW15
±50~±100
±0.5%~±2%
1mΩ~20mΩ
File size:906.12 KB
Details
MW
Metal Foil Wide Terminal Current Sensing Chip Resistors
1.5W
MW12
±50~±100
±0.5%~±2%
1mΩ~100mΩ
File size:906.12 KB
Details
MW
Metal Foil Wide Terminal Current Sensing Chip Resistors
1W
MW08
±50~±100
±0.5%~±2%
1mΩ~100mΩ
File size:906.12 KB
Details
MS
Metal Foil Chip Resistors
2W
MS12
±50
±1%
100mΩ＜R≤200mΩ
File size:691.5 KB
Details
MS
Metal Foil Chip Resistors
2W、3W
MS12
±50
±1%
10mΩ≤R≤100mΩ
File size:691.5 KB
Details
MS
Metal Foil Chip Resistors
2W、3W
MS12
±100
±1%
5mΩ~10mΩ
File size:691.5 KB
Details
MS
Metal Foil Chip Resistors
1.5W
MS10
±50
±1%
10mΩ，25mΩ，50mΩ，80mΩ，100mΩ，150mΩ
File size:691.5 KB
Details
MS
Metal Foil Chip Resistors
1W
MS06
±50~±100
±1%
5mΩ~60mΩ
File size:691.5 KB
Details
MS
Metal Foil Chip Resistors
3/4W
MS05
±50
±1%
10mΩ
File size:691.5 KB
Details
MS
Metal Foil Chip Resistors
1/2W
MS05
±50~±100
±1%
5mΩ~50mΩ
File size:691.5 KB
Details
MS
Metal Foil Chip Resistors
1/2W
MS03
±50~±75
±1%
5mΩ~30mΩ
File size:691.5 KB
Details
MS
Metal Foil Chip Resistors
1/4W
MS02
±100
±1%
26mΩ~50mΩ
File size:691.5 KB
Details
MS
Metal Foil Chip Resistors
1/3W
MS02
±100~±150
±1%
2.5mΩ~25mΩ
File size:691.5 KB
Details
MS
Metal Foil Chip Resistors
1/5W
MS01
±200
±1%
10mΩ,20mΩ
File size:691.5 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±50ppm/℃
±0.5% 、±1%
1Ω≤R≤3MΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±50ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤3MΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±25ppm/℃
±0.5% 、±1%
1Ω≤R≤3MΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±25ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤3MΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±10ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
50Ω≤R≤200KΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
3/4W
TC12
±5ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
100Ω≤R≤25KΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/2W
TC10
±50ppm/℃
±0.5% 、±1%
1Ω≤R≤3MΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/2W
TC10
±50ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤3MΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/2W
TC10
±25ppm/℃
±0.5% 、±1%
1Ω≤R≤3MΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/2W
TC10
±25ppm/℃
±0.1% 、±0.25%
4.7Ω≤R≤3MΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/3W
TC10
±10ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
50Ω≤R≤200KΩ
File size:635.85 KB
Details
TC
High-Precision Thin Film Chip Resistors
1/3W
TC10
±5ppm/℃
±0.1% 、±0.25%、±0.5% 、±1%
100Ω≤R≤25KΩ
File size:635.85 KB
Details
